If you own a 2007 to 2011 Jeep Wrangler equipped with the 3.8L V6 engine, there's a chance you've already encountered, or are currently dealing with, a failing PCM (Powertrain Control Module). This module is the brain behind your engine's operation, and when it starts to go, the symptoms can be wide-ranging and deeply frustrating. You might be chasing misfires or staring at a dead battery that your alternator refuses to charge, no matter what you replace. Understanding what's actually happening inside the PCM and what your repair options look like can save you real time and money.

Shop our 07-11 Jeep Wrangler 3.8L PCM repair!

What Is the PCM and What Does It Do?

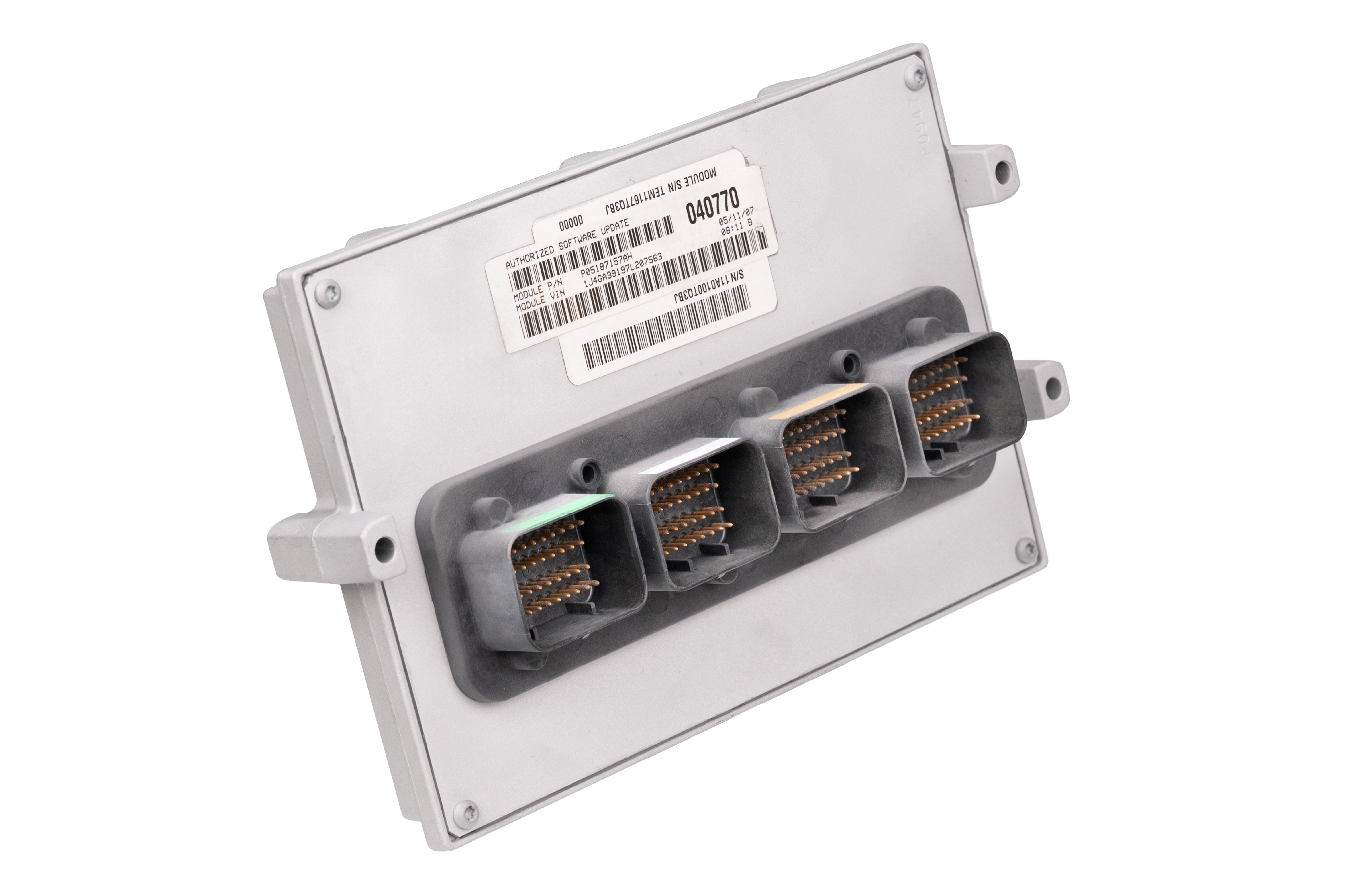

The Powertrain Control Module, sometimes called the ECM, is the central computer that monitors and manages your engine's operation in real time. It controls fuel injection timing, spark delivery to each cylinder, throttle response, and your vehicle's charging system.

In the 2007 to 2011 Wrangler, the PCM also manages the charging system by actively controlling the alternator. It compares the incoming generator voltage to the battery voltage from the TIPM (Totally Integrated Power Module) and cycles a ground path to regulate the amount of current the alternator produces. That's a lot of responsibility packed into one module, and it means a single internal failure can produce symptoms that look like they're coming from entirely different systems.

Common Symptoms of a Failing 3.8L PCM

PCM failure in these Wranglers tends to show up in a few specific, recognizable ways:

Misfires and coil driver failures. The PCM contains internal driver circuits that fire each ignition coil. When a coil pack fails, it can damage the PCM. You'll see misfire codes and rough running, even after you've already replaced the coil and spark plugs. If the misfire codes continue after replacing the coil and spark plugs with OEM parts, the PCM may need to be repaired.

Alternator not charging the battery. If your battery light is on and you have a good alternator, the PCM's internal voltage regulator may have failed. The alternator can spin perfectly and still not charge the battery if the PCM can't send the correct control signal.

Check engine light with charging or coil-related codes. The most commonly seen codes with this failure include:

• P0351–P0356 - Ignition Coil Circuit faults (cylinders 1-6)
• P2302, P2305, P2308, P2311, P2314, P2317 - Ignition Coil Secondary Circuit faults
• P0622 - Alternator Field Control Circuit
• P0562 / P0563 - System Voltage Low / High
• P2503 - Charging System Voltage Low

Other Potential PCM Related Codes:

• P0157 / P0158 - Oxygen Sensor Voltage faults (Bank 2, Sensor 2)

Seeing multiple codes across coil circuits and charging system circuits at the same time is a strong indicator that the PCM itself is the root cause, because these systems share no external components with each other. A bad coil won't cause a charging fault, and a failing alternator won't trigger a misfire. The only thing they have in common is the PCM controlling both of them internally.

What Causes These PCMs to Fail?

The PCMs can fail due to external components connected to the PCM failing and backfeeding into the module, destroying the corresponding drivers. Also, solder cracks can develop on the solder joints of critical components related to the O2 heater circuits and charging system circuits, especially on a Wrangler that sees off-road use, temperature extremes, and high vibration levels.

Diagnosing the Problem

Before sending your PCM in for repair, it's worth ruling out a few things:

For charging issues: Check voltage directly at the battery with the engine running using a multimeter. A healthy charging system should read around 14 volts. If you're seeing 12 volts or less, the alternator isn't charging. To confirm whether the issue is the alternator or the PCM, check the field control wire (pin 1 at the alternator). It should read a few volts below system voltage when the system is commanding a charge. If that voltage is low or absent but the alternator's sense wire (pin 2) shows correct battery voltage, the PCM is failing to command the alternator, not the other way around.

For misfire issues P035x codes: Since this engine utilizes a single coil pack and not an individual coil-on-plug setup, the first step would be to replace the coil pack, spark plugs, and spark plug wires with new OEM parts. If that does not resolve all of the misfire issues, and the wiring harness between the PCM and the coil pack tests well, then the PCM will need to be repaired.

Also check: Battery health, wiring harness condition between the PCM and alternator, and connector corrosion,  particularly in areas exposed to trail debris and moisture.

Why Buying a Replacement PCM Isn't the Best Move

The reflex when a module fails is to find a replacement, but for the 3.8L Wrangler PCM, that approach has some downsides.

A used PCM pulled from a salvage vehicle has already been through the same years of heat, vibration, and electrical stress that failed your original. You have no way to know how close it is to its own failure point. A new OEM replacement can be expensive. Both options require dealer programming (your existing key won't work without it) and utilize the same underlying components and design that caused the original failure. You're spending more money to start the same clock over again.

How to Get Your PCM Repaired

The repair process is simple:

1. Remove the PCM. Disconnect the harness connectors and unbolt the module. Take photos or videos of your process to make reinstallation easier.
2. Place your order and ship. After ordering, you'll receive shipping instructions. Package the PCM securely and send it to us.
3. We rebuild it and ship it back to you. Every known failure-prone component is replaced with upgraded parts that meet or exceed OEM specifications.
4. Reinstall and drive. No programming required. Your existing key works. Plug it back in and go. Note: Before reinstalling your repaired PCM, if coil driver damage was involved, make sure to replace all coil packs at the same time. Skipping this step risks damaging the rebuilt PCM.

Repairs are backed by a standard one-year warranty, with options to extend to two, three, or five years.

Don't Let a PCM Problem Bench Your Wrangler

No one wants to let their Wrangler sit unused because of a fixable PCM failure. The good news is that professional remanufacturing addresses the actual failure points rather than just replacing one problem with another. One business day turnaround, no dealer visit, no programming, and upgraded components that outlast the original design.

If you're seeing the symptoms described here and you've ruled out the basics, your PCM is likely the culprit. Visit our Jeep Wrangler 3.8L PCM repair page to get started, or call us at (800) 547-2049 if you'd like help walking through your diagnosis.
